Toyota PROACE Shuttle M 50 kWh
Home / EV Specifications / Toyota / Toyota PROACE Shuttle M 50 kWh

Toyota PROACE Shuttle M 50 kWh

  • Toyota PROACE Verso M 75 kWh

Full Electric

BMW i4 M50

Type 2

Type 2

Combo 2 (CCS)

Combo 2 (CCS)

83.9 kWh

83.9 kWh

11 kWh

11 kWh

450 km*

450 km*

  • Toyota PROACE Verso M 75 kWh
EV charging solutions
Residential
Workplace
Commercial parking
Retail and hospitality
Explore our products
Home EV charger
Business EV charger
Fast EV charger
All EV chargers
  • Description

Full Electric

Toyota PROACE Shuttle M 50 kWh

Type 2

Type 2

Combo 2 (CCS)

Combo 2 (CCS)

83.9 kWh

50.0 kWh

11 kWh

7.4 kWh

450 km*

175 km

Toyota PROACE Shuttle M 50 kWh

Video and Gallery

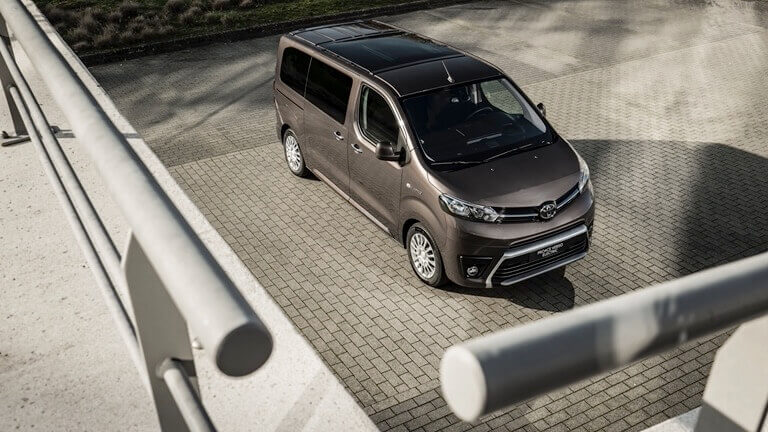

Toyota PROACE Shuttle M 50 kWh Top
Toyota PROACE Shuttle M 50 kWh Back

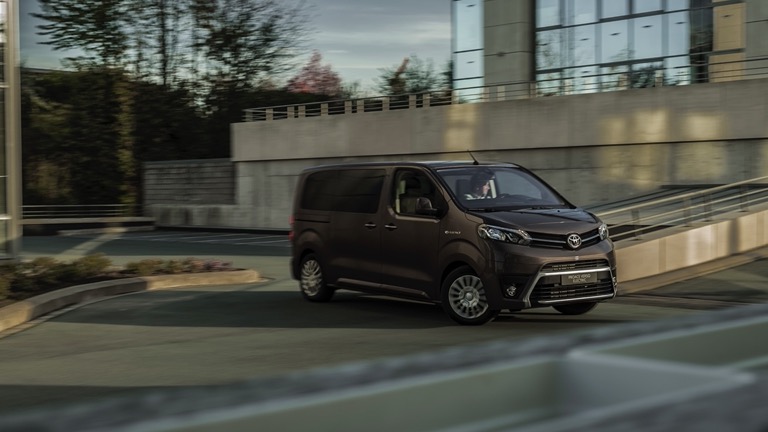

Toyota PROACE Shuttle M 50 kWh Side Front

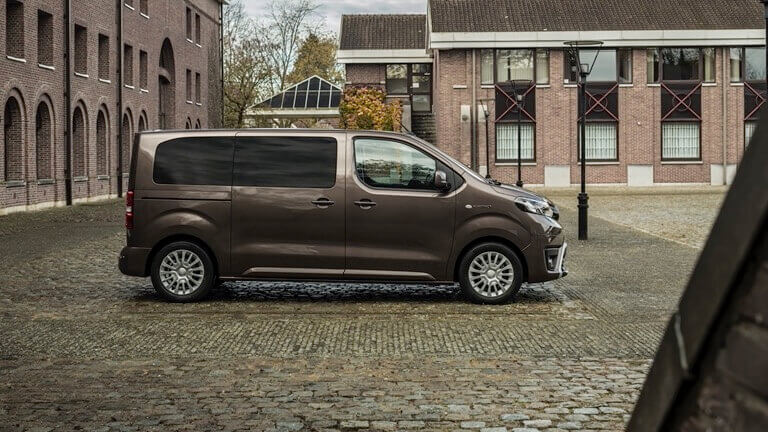

Toyota PROACE Shuttle M 50 kWh Side

Performance


Acceleration 0 – 100 km/h 12.1 sec
Top Speed 130 km/h
Electric Range * 175 km
Total Power 100 kW (136 PS)
Total Torque 260 Nm
Drive Front

Battery and Charging


Battery capacity: 50.0 kWh
Battery useable: 45.0 kWh
Charge port type: Type 2
Port location: Left Side – Front
Charge power: 7.4 kWh
Charge time: 7h15m
Charge speed: 24 km/h
Fast charge power(max): 101 kW DC
Fast charge time: 26 min
Fast charge speed: 280 km/h

Energy Consumption


EVDB Real Range

Range 175 km
Vehicle Consumption 257 Wh/km
CO2 Emissions 0 g/km
Vehicle Fuel Equivalent 2.9 l/100km

WLTP Ratings

Range 230 km
Rated Consumption 235 Wh/km
Vehicle Consumption 196 Wh/km
CO2 Emissions 0 g/km
Rated Fuel Equivalent 2.6 l/100km
Vehicle Fuel Equivalent 2.2 l/100km

Home Charging (0 -> 100%)


Charging Point Max. Power Power Time Rate
Standard 7.4 kW On-Board Charger
Wall Plug (2.3 kW) 230V / 1x10A 2.3 kW 23h15m 8 km/h
1-phase 16A (3.7 kW) 230V / 1x16A 3.7 kW 14h30m 12 km/h
1-phase 32A (7.4 kW) 230V / 1x32A 7.4 kW 7h15m 24 km/h
3-phase 16A (11 kW) 230V / 1x16A 3.7 kW † 14h30m 12 km/h
3-phase 32A (22 kW) 230V / 1x32A 7.4 kW † 7h15m 24 km/h
Optional 11.0kW On-Board Charger *
Wall Plug (2.3 kW) 230V / 1x10A 2.3 kW 23h15m 8 km/h
1-phase 16A (3.7 kW) 230V / 1x16A 3.7 kW 14h30m 12 km/h
1-phase 32A (7.4 kW) 230V / 1x32A 7.4 kW 7h15m 24 km/h
3-phase 16A (11 kW) 400V / 3x16A 11 kW 5 hours 35 km/h
3-phase 32A (22 kW) 400V / 3x16A 11 kW † 5 hours 35 km/h

Fast Charging (10 -> 80%)


Charging Point Max. Power Avg. Power Time Rate
CCS (50 kW DC) 50 kW 40 kW † 50 min 140 km/h
CCS (100 kW DC) 100 kW 75 kW † 27 min 270 km/h
CCS (150 kW DC) 101 kW † 78 kW † 26 min 280 km/h

† = Limited by charging capabilities of vehicle
