Full Electric

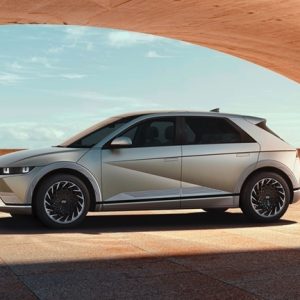

Hyundai IONIQ 5 Standard Range AWD
Type 2
58.0 kWh
11 kWh
290 km
Video and Gallery
Performance
| Acceleration 0 – 100 km/h | 6.1 sec |
| Top Speed | 185 km/h |
| Electric Range * | 290 km |
| Total Power | 173 kW (235 PS) |
| Total Torque | 605 Nm |
| Drive | AWD |
Battery and Charging
| Battery capacity: | 58.0 kWh |
| Battery useable: | 54.0 kWh |
| Charge port type: | Type 2 |
| Port location: | Right Side – Rear |
| Charge power: | 11 kW AC |
| Charge time: | 6 hours |
| Charge speed: | 50 km/h |
| Fast charge power(max): | 175 kW DC |
| Fast charge time: | 17 min |
| Fast charge speed: | 710 km/h |
Energy Consumption
EVDB Real Range
| Range | 290 km |
| Vehicle Consumption | 186 Wh/km |
| CO2 Emissions | 0 g/km |
| Vehicle Fuel Equivalent | 2.1 l/100km |
WLTP Ratings
| Range | 362 km |
| Rated Consumption | 181 Wh/km |
| Vehicle Consumption | 149 Wh/km |
| CO2 Emissions | 0 g/km |
| Rated Fuel Equivalent | 2.0 l/100km |
| Vehicle Fuel Equivalent | 1.7 l/100km |
Home Charging (0 -> 100%)
| Charging Point | Max. Power | Power | Time | Rate |
|---|---|---|---|---|
| Wall Plug (2.3 kW) | 230V / 1x10A | 2.3 kW | 27h45m | 10 km/h |
| 1-phase 16A (3.7 kW) | 230V / 1x16A | 3.7 kW | 17h15m | 17 km/h |
| 1-phase 32A (7.4 kW) | 230V / 1x32A | 7.4 kW | 8h45m | 33 km/h |
| 3-phase 16A (11 kW) | 400V / 3x16A | 11 kW | 6 hours | 48 km/h |
| 3-phase 32A (22 kW) | 400V / 3x16A | 11 kW † | 6 hours | 48 km/h |
Fast Charging (10 -> 80%)
| Charging Point | Max. Power | Avg. Power | Time | Rate |
|---|---|---|---|---|
| CCS (50 kW DC) | 50 kW | 50 kW | 48 min | 250 km/h |
| CCS (100 kW DC) | 100 kW | 90 kW † | 27 min | 450 km/h |
| CCS (150 kW DC) | 150 kW | 120 kW † | 20 min | 600 km/h |
| CCS (175 kW DC) | 175 kW | 140 kW † | 17 min | 710 km/h |
| CCS (350 kW DC) | 175 kW † | 140 kW † | 17 min | 710 km/h |
† = Limited by charging capabilities of vehicle
